450℉/232℃ EPDM/LEAD Flat Electrical Submersible Pump Cable
Application
These cables are designed for transmitting power to the submersible motor in the oil industry, suitable for
installed down well in the oil industry.
Standard
IEEE Std. 1018 API RP 11S5 API RP 11S6

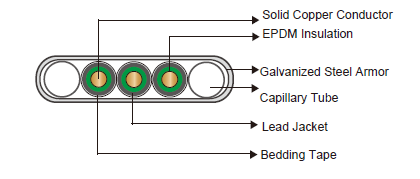

Construction
Conductor: Solid bare copper conductor.
Insulation: EPDM insulation with a poly adhesive layer to the conductor.
Jacket: Lead jacket.
Tape: Overlapped fiber cloth bedding tape.
Armor: Galvanized steel tape.
Capillary Tube: SS 316.
Dimensions and Weight
5KV
Cable Type |
Conductor |
Conductor |
Insulation |
Overall O.D. |
Weight |
|||
|---|---|---|---|---|---|---|---|---|
|
AWG |
mm² |
mm |
Inches |
mm |
Inches |
mm |
kg/km |
QYEQC-232-5KV-3G2 |
2 |
33.62 |
6.54±0.07 |
0.07 |
1.9 |
0.63 x 2.40 |
16.0 x 61.0 |
3820 |
QYEQC-232-5KV-3G4 |
4 |
21.15 |
5.19±0.05 |
0.07 |
1.9 |
0.57 x 2.24 |
14.5 x 57.0 |
3240 |
Electrical Data
Voltage |
KV AC |
5 |
|---|---|---|
Minimum Insulation Resistance (15.6℃) |
MΩ·km |
2AWG-1294; 4AWG-1548 |
Maximum DC Current Unbalance |
% |
2 |
Maximum DC Leakage (15.6℃) |
μA/(KV·km) |
2AWG-0.77; 4AWG-0.65 |
Maximum DC Conductor Resistant |
Ω/km |
2AWG-0.522; 4AWG-0.83 |
DC 35kV/5min |
|
No breakdown |
Mechanical Data
Temperature Rated |
℃ |
232 |
|---|---|---|
Minimum Bending Radius |
mm |
2AWG-320; 4AWG-280 |
